← All cameras

JVC GY-HM850 FTP setup

FTP · SFTP · FTPS implicit · FTPES explicitAccessory-assisted camera client2014

The GY-HM850 sends completed SD-card clips to one of four configurable FTP, SFTP, implicit FTPS, or explicit FTPES profiles. Networking is supplied through a supported HOST USB adapter, and uploads can be initiated on-camera or through the camera's web interface.

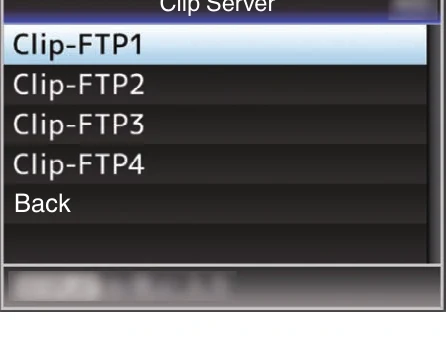

Menu path: HOST USB adapter > Main Menu > System > Network/Settings > Connection Setup > Wizard > Main Menu > System > Network/Settings > Clip Server > Clip-FTP1..4 > Media mode > thumbnail > LOLUX/3 > FTP Upload > Web browser > Clip List > Upload. Protocols: FTP · SFTP · FTPS implicit · FTPES explicit. Sends: recorded video clips on SD media.

Documented from the manufacturer manual. Sources reviewed .

TransportWi-Fi adapter through HOST USB + Ethernet adapter through HOST USB + cellular modem through HOST USB
Payloadrecorded video clips on SD media
Triggersmanual clip upload from thumbnail view / selected or all-clip upload / browser-triggered clip upload

Before you touch the menu

What to gather

  1. 01Current GY-HM850 firmware.
  2. 02A JVC-supported HOST USB Wi-Fi, Ethernet, or cellular adapter.
  3. 03A short recorded test clip.
  4. 04Camera to Anywhere server, protocol, port, credentials, and directory.
  5. 05The expected server fingerprint for SFTP/FTPS/FTPES validation.

Connection fields

Alias

A memorable destination label.

Appears in the FTP Upload chooser.

Protocol

FTP, SFTP, FTPS (implicit), or FTPES (explicit).

Matches the receiver's security mode.

Server

Camera to Anywhere hostname or IP, without scheme/path.

Identifies the receiver.

Port

The exact assigned port.

Selects the active listener.

Dir. Path

Assigned remote input directory.

Routes the clip.

Username

Per-source username.

Authenticates and identifies the camera.

Password

Issued source password.

Completes authentication.

PASV Mode

On for FTP-family protocols behind NAT; unavailable for SFTP.

Avoids active-mode inbound data connections.

The menu, step by step

What moves, and what does not

Transfer modes

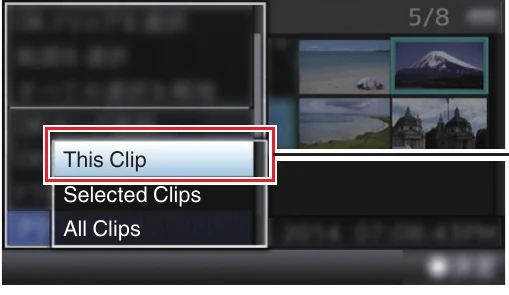

  • Single clip
  • Multiple selected clips
  • All playable clips
  • Browser upload of all/OK/selected clips
  • Upload continuing while the camera returns to shooting

Media behavior

  • Only completed recorded clips are uploaded.
  • The active card/thumbnail view defines the selectable set.
  • Upload progress and stop controls are displayed.
  • Secure protocols request first-use fingerprint validation.
  • Duplicate filenames normally prompt before overwrite.

Limits and warnings

  • A supported HOST USB network adapter is required.
  • Automatic post-record and chunked uploads are not documented for this family manual.
  • HTTP FTP proxy mode supports only FTP and changes overwrite behavior.
  • The family manual does not document resume; re-send the whole clip after an interruption.
  • Use the current JVC adapter compatibility list because older USB adapters may no longer be available.

Prove it on your body

Run this checklist on the exact body, firmware, network, and media format you will use on assignment.

Use the current firmware and JVC's current supported-adapter list. FTP resume is unavailable when SFTP is selected. Physical Camera to Anywhere interoperability is not yet lab-verified.

  1. 01The network status screen has a valid IP.
  2. 02The correct Clip Server alias is selected.
  3. 03Fingerprint is approved for secure protocols.
  4. 04One test clip completes.
  5. 05Remote bytes match.
  6. 06Browser upload works only if it is part of the production plan.

If it will not send

01Server unreachable

Confirm adapter, IP/DNS/gateway, Server, Port, and venue egress rules.

02Access denied

Verify account permission for the selected Dir. Path.

03Authentication fails

Correct Username and Password in the chosen Clip-FTP profile.

04Path invalid

Use an existing writable server path in Dir. Path.

05Secure connection warning

Compare the displayed fingerprint with the value supplied for the endpoint before accepting.

Sources

The local archive keeps this research reproducible if an official link changes. It is not redistributed through this site.

  1. 01

    JVC GY-HM850/GY-HM890 Instructions

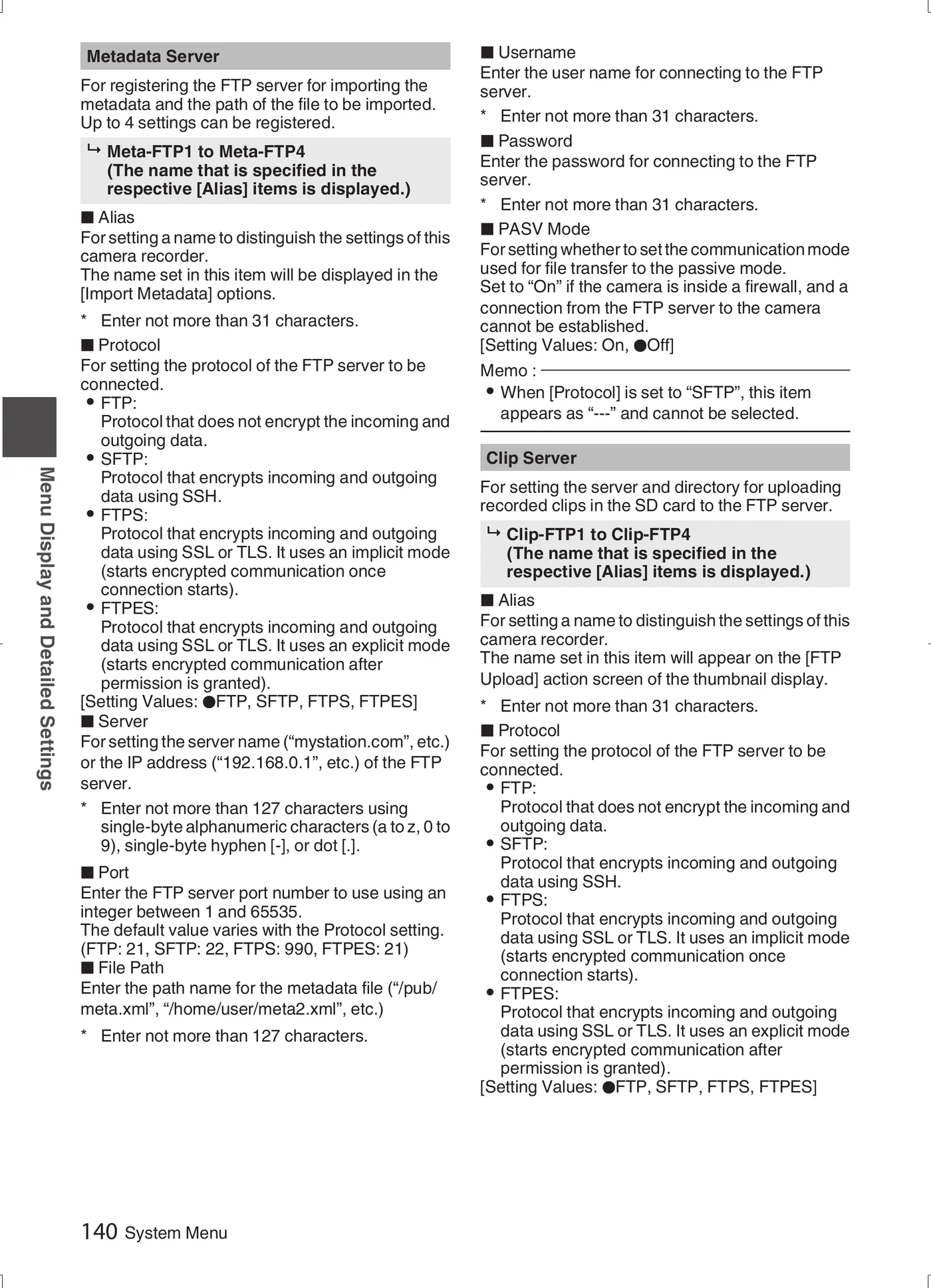

    Printed pp. 140-141, Clip Server; pp. 180-182, Uploading a Recorded Video Clip

    Open manufacturer source ↗
  2. 02

    JVC online Configuring the FTP Server for Uploading

    Configuring the FTP Server for Uploading

    Open manufacturer source ↗

archived-local-ignored · retrieved 2026-08-26 · 220 pages
