JVC GY-LS300 FTP setup

FTP · SFTP · FTPS implicit · FTPES explicitAccessory-assisted camera client2015

The GY-LS300 uploads completed clips to arbitrary FTP, SFTP, implicit FTPS, or explicit FTPES servers through a supported HOST USB adapter. The camera and browser interfaces provide single, multiple, all, and OK-marked clip selection.

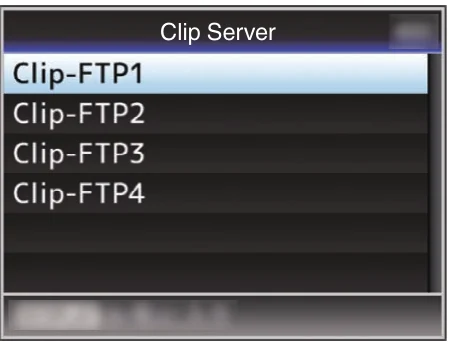

Menu path: HOST USB adapter > Main Menu > System > Network/Settings > Connection Setup > Wizard > Main Menu > System > Network/Settings > Clip Server > Clip-FTP1..4 > Media mode > thumbnail > LOLUX/3 > FTP Upload > Web browser > Clip List > Upload. Protocols: FTP · SFTP · FTPS implicit · FTPES explicit. Sends: recorded video clips on SD media.

Documented from the manufacturer manual. Sources reviewed .

TransportWi-Fi adapter through HOST USB + Ethernet adapter through HOST USB + cellular modem through HOST USB
Payloadrecorded video clips on SD media
Triggersmanual clip upload from thumbnail view / selected or all-clip upload / browser-triggered clip upload

Before you touch the menu

What to gather

  1. 01Current manufacturer firmware.
  2. 02A supported HOST USB Wi-Fi, Ethernet, or cellular adapter.
  3. 03A recorded test clip.
  4. 04Camera to Anywhere server, protocol, port, credentials, and directory.
  5. 05Known secure-protocol server fingerprint.

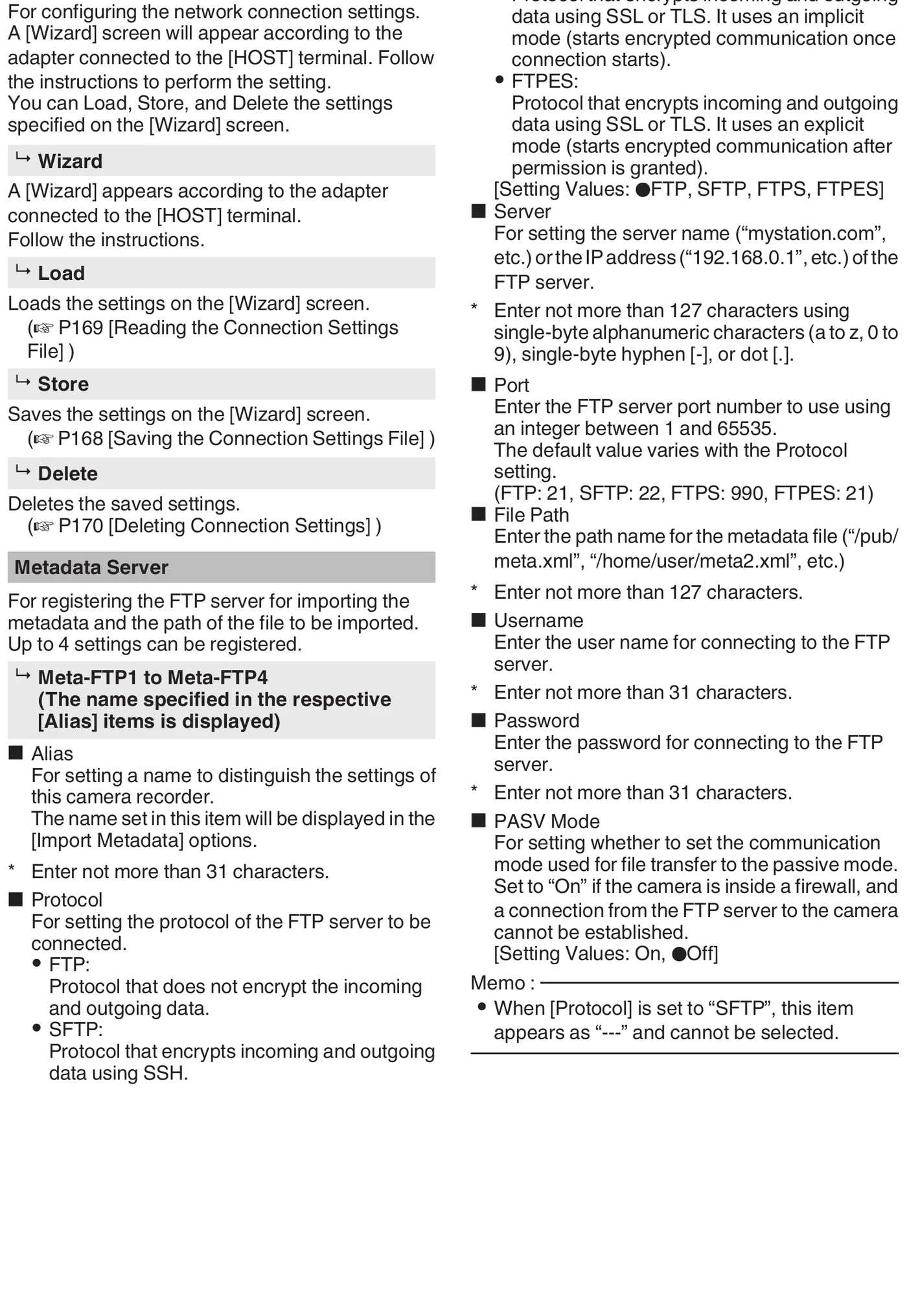

Connection fields

Alias

Short destination name.

Appears in the FTP Upload chooser.

Protocol

FTP, SFTP, FTPS (implicit), or FTPES (explicit).

Matches endpoint security.

Server

Hostname or IP only.

Identifies the receiver.

Port

Assigned listener port.

Selects the correct service.

Dir. Path

Assigned remote input path.

Routes the clip.

Username

Per-source username.

Authenticates and identifies the source.

Password

Issued password.

Completes authentication.

PASV Mode

On for FTP-family protocols behind NAT; unavailable for SFTP.

Provides a firewall-friendly data channel.

The menu, step by step

What moves, and what does not

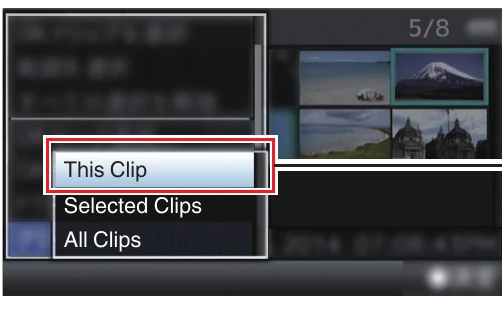

Transfer modes

  • This clip
  • Selected clips
  • All clips
  • Browser all/OK/selected upload
  • Background transfer

Media behavior

  • Uploads completed SD-card clips.
  • Progress and stop controls are available.
  • Secure protocols request fingerprint confirmation.
  • A same-name destination file triggers overwrite confirmation unless the connection uses an HTTP FTP proxy.
  • Camera mode can be restored while upload continues.

Limits and warnings

  • A supported HOST USB adapter is required.
  • An HTTP FTP proxy restricts the connection to FTP and suppresses overwrite confirmation.
  • Browser operations are disabled while a browser-initiated upload is running.
  • Do not overwrite a same-name destination file until its identity is verified.

Prove it on your body

Run this checklist on the exact body, firmware, network, and media format you will use on assignment.

FTP resume was added in firmware 2.04; use the newest compatible firmware. Resume remains unavailable when SFTP is selected; use JVC's current supported-adapter list. Physical Camera to Anywhere interoperability is not yet lab-verified.

  1. 01Firmware is current.
  2. 02Adapter and network IP are valid.
  3. 03Profile and fingerprint are verified.
  4. 04One clip uploads with matching bytes.
  5. 05A browser-selected clip reaches the same destination.
  6. 06A same-name test prompts before overwrite when no HTTP FTP proxy is configured.

If it will not send

01Cannot connect

Verify adapter, IP/DNS/gateway, host, port, and venue firewall.

02Invalid login/path

Correct profile credentials and Dir. Path.

03Fingerprint differs

Stop and verify the endpoint rather than accepting an unexpected key/certificate.

04Transfer repeatedly times out

Use a more stable network path and retry the same completed clip.

Sources

The local archive keeps this research reproducible if an official link changes. It is not redistributed through this site.

  1. 01

    JVC GY-LS300 Instructions

    Printed pp. 124-125, Clip Server; pp. 151-153, Uploading a Recorded Video Clip

    Open manufacturer source ↗
  2. 02

    JVC online FTP server configuration

    Configuring the FTP Server for Uploading

    Open manufacturer source ↗
