Fujifilm X-H2 FTP setup

FTP · FTPS · SFTPAccessory-assisted camera client2022

The X-H2 uses the optional FT-XH file transmitter to initiate destination-neutral FTP, FTPS, or SFTP uploads over Wi-Fi, Ethernet, or USB smartphone tethering. Its FTP profile, queue, file-type controls, and transfer behavior mirror the X-H2S workflow.

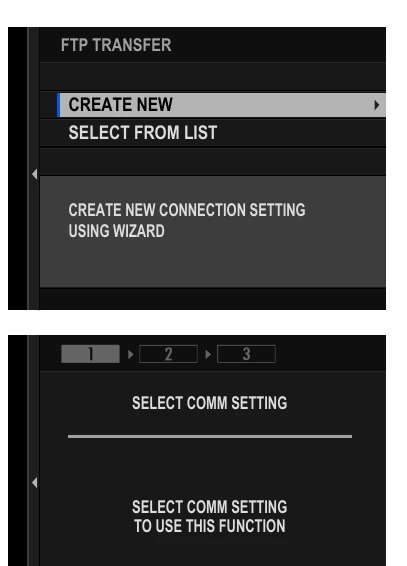

Menu path: Attach FT-XH > Network/USB Setting > Create/Edit Connection Setting > Create Using Wizard > Select Comm Setting > Communication settings > FTP Server Setting > Create New > Save connection setting > Connection Test > Select > Network/USB Setting > FTP Optional Setting. Protocols: FTP · FTPS · SFTP. Sends: JPEG · RAW · HEIF · TIFF · MOV · MP4.

Documented from the manufacturer manual. Sources reviewed .

TransportFT-XH 2.4/5 GHz Wi-Fi + FT-XH wired Ethernet + FT-XH USB tethering through a smartphone or tablet
PayloadJPEG · RAW · HEIF · TIFF · MOV · MP4
Triggersautomatic transfer order after capture / manual select-and-transfer in playback / priority transfer order / continue queued upload while powered off

Before you touch the menu

What to gather

  1. 01X-H2 and FT-XH file transmitter running mutually compatible current firmware.
  2. 02A charged camera and transmitter, plus a memory card containing a test JPEG.
  3. 03A venue Wi-Fi network, Ethernet connection, or a smartphone with USB tethering enabled.
  4. 04Camera to Anywhere server address, protocol, port, username, password, and destination directory.
  5. 05For FTPS with a private trust chain, place the required root certificate on the camera memory card before setup.

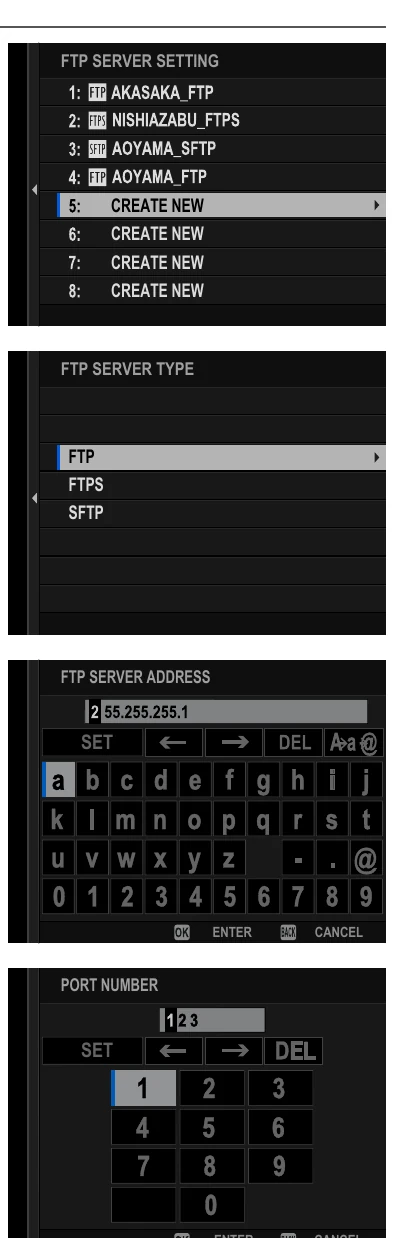

Connection fields

FTP Server Type

FTP, FTPS, or SFTP as issued by Camera to Anywhere.

The protocol controls encryption, default port expectations, and whether passive mode applies.

FTP Server Address

The Camera to Anywhere hostname without a URL scheme or path.

The camera resolves this host as the upload destination.

Port Number

The assigned listener port.

The camera must reach the exact ingress listener.

Proxy Server

Disable unless the venue or organization explicitly supplies an FTP proxy address and port.

A normal hotspot or direct gateway connection does not need a proxy.

Passive Mode

Enable for ordinary FTP/FTPS deployments behind NAT unless the endpoint instructions say otherwise.

Passive mode avoids an inbound data connection from the server to the camera.

Login

Choose User Name & Password and enter the per-source credentials.

Per-source credentials associate uploads with the intended Camera to Anywhere input.

Specify Target Folder

Enter the assigned remote directory, or use Root Folder only when instructed.

The path routes files to the intended gallery or workflow.

Overwrite Same File Name

Prefer No during validation.

The camera then adds a number instead of replacing an existing remote file.

Root Certificate

For FTPS when required, load the approved root certificate from the memory card.

The FT-XH needs a trusted certificate authority for the TLS server.

The menu, step by step

What moves, and what does not

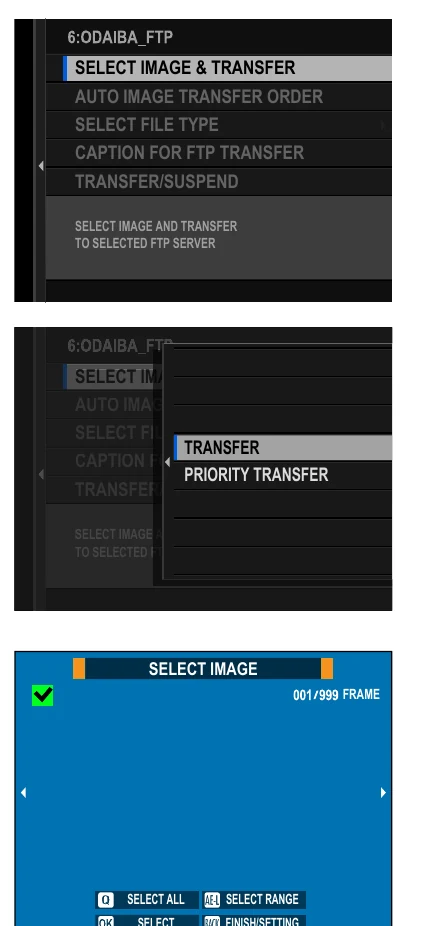

Transfer modes

  • Manual Select Image & Transfer
  • Priority Transfer
  • Auto Image Transfer Order after capture
  • Playback-button transfer order
  • Queued transfer while powered off

Media behavior

  • JPEG, RAW, HEIF, TIFF, MOV, and MP4 can be selected independently.
  • Transfer orders support up to 9,999 items.
  • Switching card slots or filter criteria clears current selection marks.
  • Captions can be included or omitted.
  • The information screen reports current FTP order status.

Limits and warnings

  • The FT-XH is required for FTP features.
  • USB smartphone tethering uses the transmitter connector, not the camera connector.
  • The documented workflow does not support Lightning camera adapters or USB OTG cables.
  • A profile should be re-tested after firmware or network changes.

Prove it on your body

Run this checklist on the exact body, firmware, network, and media format you will use on assignment.

FTP features are available only with FT-XH attached. Keep both the camera and FT-XH on current compatible firmware; menu availability has changed through feature firmware releases. Physical Camera to Anywhere interoperability is not yet lab-verified.

  1. 01FT-XH is detected.
  2. 02Connection test succeeds.
  3. 03One JPEG appears in the assigned remote folder.
  4. 04Remote filename and byte size match.
  5. 05A second capture follows the selected transfer mode.
  6. 06The FTP order status is clear.

If it will not send

01Connection test fails

Verify the communication profile, IP settings, hostname, port, protocol, directory, and login.

02Upload stalls behind a hotspot

Confirm the hotspot permits the port and enable passive mode for FTP/FTPS.

03FTPS trust failure

Load the correct root certificate and confirm the server hostname matches the certificate.

04Queue does not move

Set Transfer/Suspend to Transfer and confirm the completed connection profile is selected.

Sources

The local archive keeps this research reproducible if an official link changes. It is not redistributed through this site.

  1. 01

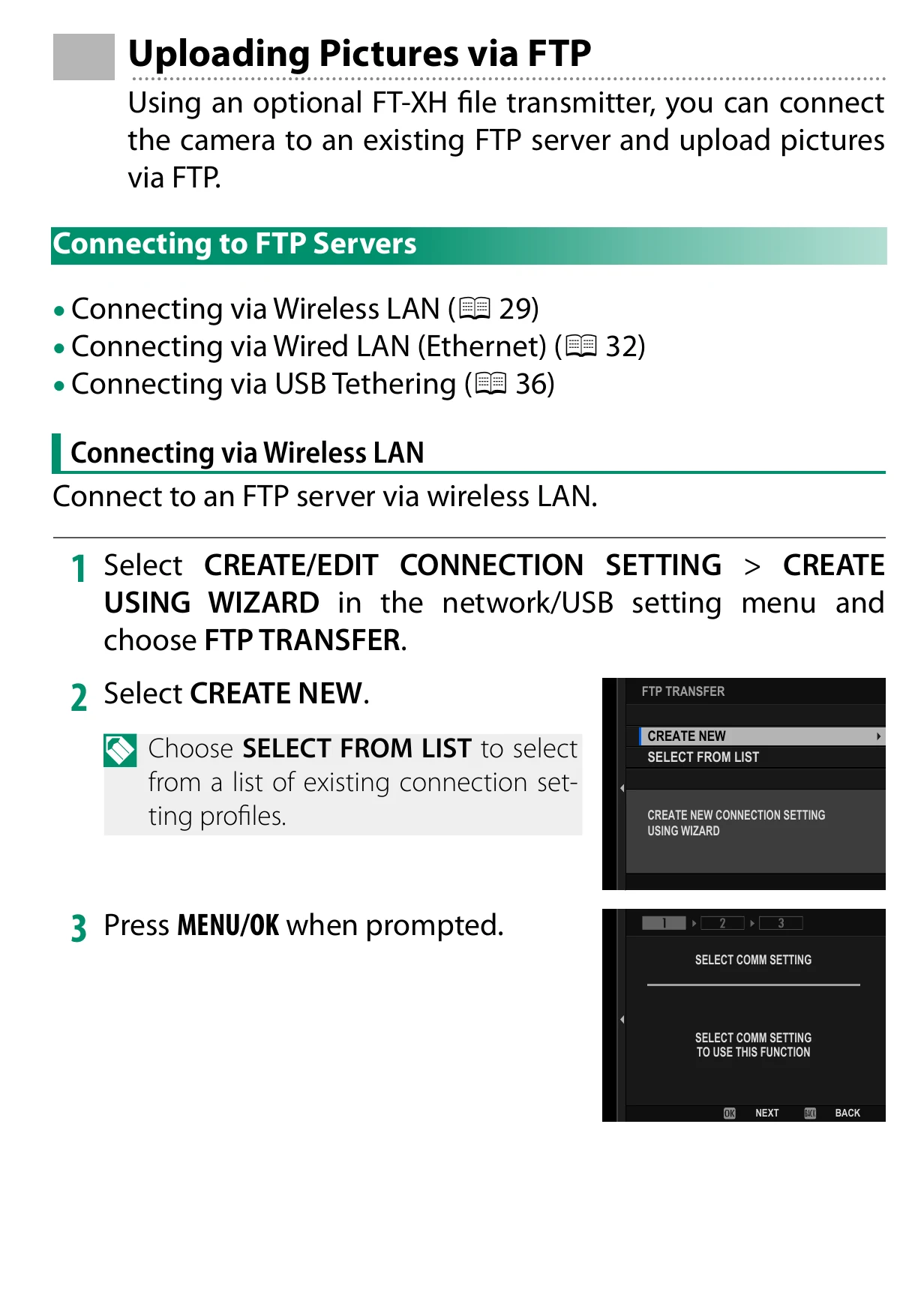

    Fujifilm X-H2 Network and USB Features Guide

    Printed pp. 29-44, Uploading Pictures via FTP; printed pp. 76-78, FTP Optional Setting

    Open manufacturer source ↗
  2. 02

    Fujifilm X-H2 connection manual landing page

    Official HTML/PDF manual index

    Open manufacturer source ↗

archived-local-ignored · retrieved 2026-08-26 · 100 pages
