Canon EOS C200B FTP setup

FTPDirect camera client2017

EOS C200B documents camera-initiated FTP transfer over built-in Wi-Fi, built-in Gigabit Ethernet. For Camera to Anywhere, configure a scoped input-gallery account and send MP4 clips, XF-AVC clips, proxy clips directly from the camera; downstream cloud and NAS routes run only after ingest is complete.

Menu path: MENU > Network settings > Connection setting > Create with wizard > Function setting > FTP transfer > FTP server settings > MEDIA/index screen > FTP transfer. Protocols: FTP. Sends: MP4 clips · XF-AVC clips · proxy clips.

Documented from the manufacturer manual. Sources reviewed September 14, 2026.

Transportbuilt-in Wi-Fi + built-in Gigabit Ethernet

PayloadMP4 clips · XF-AVC clips · proxy clips

Triggersselected clips / batch clips

Before you touch the menu

What to gather

01A supported EOS C200B body or, for an accessory guide, a camera listed as compatible by Canon.
02No external transmitter is required for at least one documented network path; use only interfaces named in the manufacturer source.
03Current mutually compatible camera/transmitter firmware, a charged battery or continuous event power, and a writable memory card containing a supported file.
04A network path documented for this setup: built-in Wi-Fi, built-in Gigabit Ethernet.
05A Camera to Anywhere input gallery with a dedicated host, port, username, secret, destination directory, and any certificate or host-key data.
06A venue LAN or phone/dedicated hotspot without a captive-portal step on the camera and with outbound access to the configured FTP-family ports.

Connection fields

Protocol

FTP

The camera and ingest listener must use the same FTP-family protocol.

Server address / host name

The host name shown in the Camera to Anywhere input-gallery connection card; omit https:// and any path.

Camera FTP fields expect a server address, not a browser URL.

Port

The exact port published with the input-gallery credentials.

Camera to Anywhere may expose different listeners for FTP, explicit FTPS, or SFTP; do not assume a default.

Login name

The per-camera or per-job ingest username.

A scoped identity lets the gateway route and revoke one camera without changing every shooter.

Password / authentication secret

The generated secret shown once for this ingest identity.

The gateway rejects anonymous uploads and uses the credential envelope only for this input.

Target folder / directory

The destination path shown for the input gallery, including leading slash only when the connection card includes it.

The path is a routing key; changing its spelling can create a different server folder.

Passive mode

Use the passive-mode value shown by Camera to Anywhere; prefer passive when the camera offers it behind venue NAT.

Passive data connections are usually more compatible with hotspots and venue firewalls.

The menu, step by step

MENU > Network settings

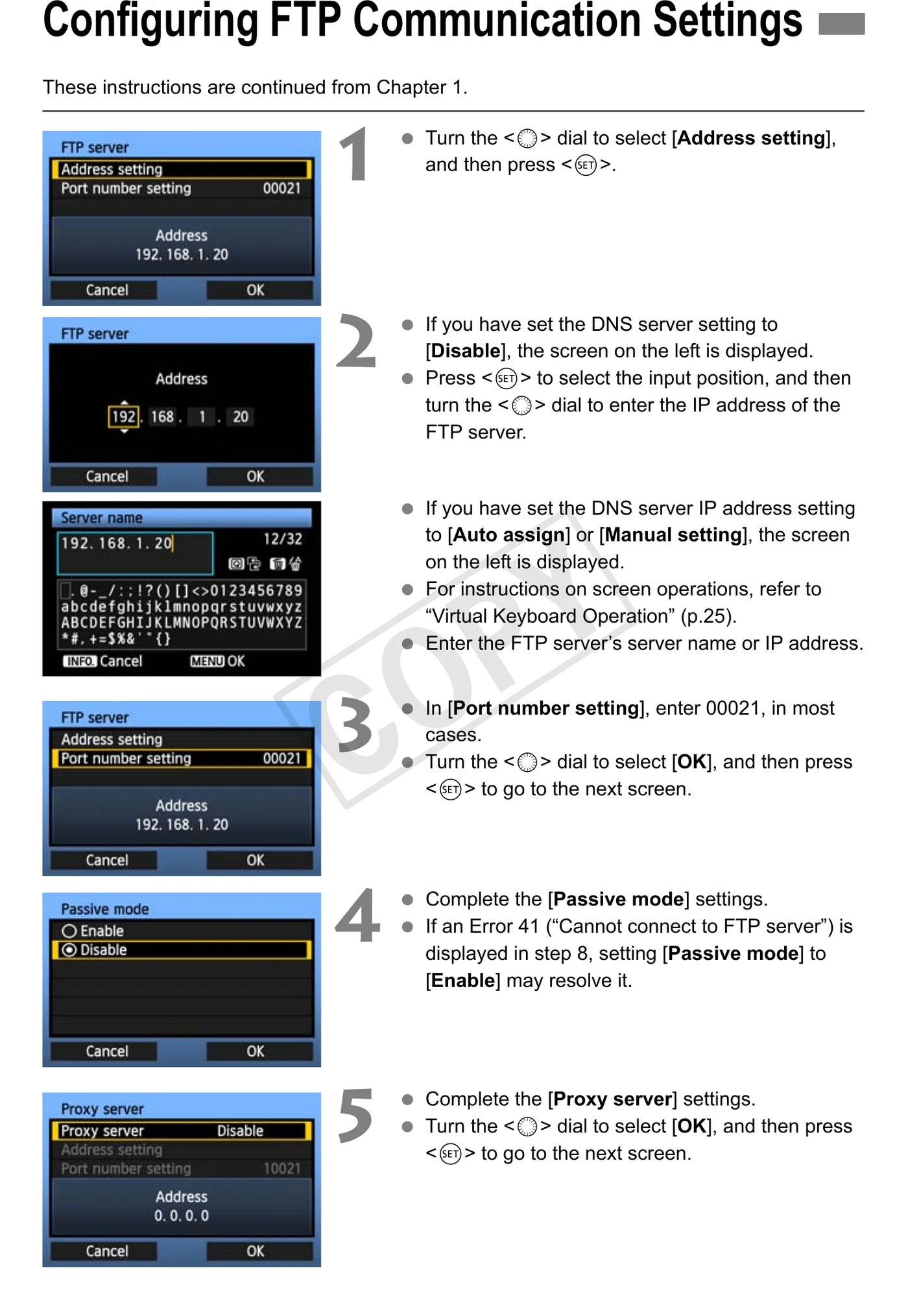

Canon EOS C200B network and file transfer menu evidence — RELATED MODEL MENU REFERENCE · 1/1Shown on Canon EOS C300 Mark II; labels can vary on this camera.
Related-model menu reference for EOS C200B; the written route is sourced from its archived manual, while labels may vary on this camera.
Canon WFT-E6 Wireless File Transmitter Guide (related-model reference) · PDF p. 28 ↗Instructional excerpt from an official Canon manual; copyright remains with Canon.

Connection setting > Create with wizard

Select the camera transport (Wi-Fi, wired LAN, or supported adapter) and join the venue network.

FTP server settings

Enter the Camera to Anywhere host, port, login, password, destination path, and security values shown for the job.

MEDIA/index screen > FTP transfer

Select the recorded clip, proxy, still, or batch named in the manual and start transfer; cinema bodies do not generally send the full recorded clip automatically at record stop.

What moves, and what does not

Transfer modes

Manual: selected clips.
Manual: batch clips.

Media behavior

Video payloads documented by the manufacturer: MP4 clips, XF-AVC clips.
Proxy behavior documented by the manufacturer: proxy clips.
The camera writes the source file to its card first; Camera to Anywhere receives a transmitted copy and does not replace in-camera media management.
Treat the camera send mark as transport state, not cloud-delivery proof; confirm the asset appears in the Camera to Anywhere input gallery and destination activity log.

Limits and warnings

C200B shares the C200 manual; FTP is a media-mode operation.
The cataloged path is manual; do not promise record-stop or capture-time automatic delivery for this body.
Video or clip payloads require a manual selection unless the exact camera firmware manual states otherwise.
Venue Wi-Fi client isolation does not block a camera from reaching a public Camera to Anywhere host, but captive portals, outbound-port filtering, weak signal, and phone hotspot sleep can still prevent or interrupt transfer.

Prove it on your body

Run this checklist on the exact body, firmware, network, and media format you will use on assignment.

C200B shares the C200 manual; FTP is a media-mode operation. Physical Camera to Anywhere interoperability is not yet lab-verified.

01Confirm EOS C200B and every required transmitter/adapter run a compatible firmware combination.
02Create a dedicated Camera to Anywhere ingest identity for EOS C200B; do not reuse a destination OAuth token as a camera password.
03Match protocol (FTP), host, port, username, target directory, and passive/security options to the connection card.
04Send one small still or clip and wait for the camera transfer-complete mark.
05Verify the received file size and checksum in the Camera to Anywhere input gallery before enabling automatic or batch transfer.
06Test the exact recording codec/container and proxy setting planned for the event; a successful JPEG test does not prove video compatibility.
07Trigger the configured destination route and confirm its activity log independently from camera ingest.
08Lock the working camera profile against accidental edits and retain a second known-good profile or printed connection card for event recovery.

If it will not send

01The camera cannot find or connect to the server

Confirm the camera has an IP address, the hotspot has Internet access, the host field contains no URL scheme/path, and the venue permits the published control and data ports.

02Login or destination-folder error

Re-enter the scoped username and secret, preserve case, and copy the target directory exactly; create a fresh ingest credential if the secret may have been exposed.

03Small files work but RAW or video stalls

Check remaining card space, battery/power, hotspot sleep settings, passive-mode configuration, signal strength, gateway size limits, and whether the camera permits that file type in the selected transfer mode.

04FTP data connection opens but no bytes move

Use the passive-mode value from Camera to Anywhere and confirm the network allows the FTP data-port range.

05The camera says sent but the destination does not show the asset

First verify the input gallery received the complete file, then inspect routing-node status; camera success covers the ingest hop, not Dropbox, NAS, or another downstream destination.

06Retries create duplicates or overwrite a prior file

Use a unique camera/job prefix and review the body manual overwrite/rename setting; Camera to Anywhere should deduplicate by upload identity and checksum rather than filename alone.
