Canon EOS R FTP setup

FTPAccessory-assisted camera client2018

EOS R documents camera-initiated FTP transfer over Wi-Fi via WFT-E7, Ethernet via WFT-E7. For Camera to Anywhere, configure a scoped input-gallery account and send JPEG, RAW, movie files directly from the camera; downstream cloud and NAS routes run only after ingest is complete.

Menu path: MENU > Communication functions > Network settings > Create connection > Communication settings > FTP server settings > Transfer images to FTP server. Protocols: FTP. Sends: JPEG · RAW · movie files.

Documented from the manufacturer manual. Sources reviewed September 14, 2026.

TransportWi-Fi via WFT-E7 + Ethernet via WFT-E7

PayloadJPEG · RAW · movie files

Triggersnew stills after capture / selected stills / movie files

Before you touch the menu

What to gather

01A supported EOS R body or, for an accessory guide, a camera listed as compatible by Canon.
02Wireless File Transmitter WFT-E7 required
03Current mutually compatible camera/transmitter firmware, a charged battery or continuous event power, and a writable memory card containing a supported file.
04A network path documented for this setup: Wi-Fi via WFT-E7, Ethernet via WFT-E7.
05A Camera to Anywhere input gallery with a dedicated host, port, username, secret, destination directory, and any certificate or host-key data.
06A venue LAN or phone/dedicated hotspot without a captive-portal step on the camera and with outbound access to the configured FTP-family ports.

Connection fields

Protocol

FTP

The camera and ingest listener must use the same FTP-family protocol.

Server address / host name

The host name shown in the Camera to Anywhere input-gallery connection card; omit https:// and any path.

Camera FTP fields expect a server address, not a browser URL.

Port

The exact port published with the input-gallery credentials.

Camera to Anywhere may expose different listeners for FTP, explicit FTPS, or SFTP; do not assume a default.

Login name

The per-camera or per-job ingest username.

A scoped identity lets the gateway route and revoke one camera without changing every shooter.

Password / authentication secret

The generated secret shown once for this ingest identity.

The gateway rejects anonymous uploads and uses the credential envelope only for this input.

Target folder / directory

The destination path shown for the input gallery, including leading slash only when the connection card includes it.

The path is a routing key; changing its spelling can create a different server folder.

Passive mode

Use the passive-mode value shown by Camera to Anywhere; prefer passive when the camera offers it behind venue NAT.

Passive data connections are usually more compatible with hotspots and venue firewalls.

The menu, step by step

Network settings > Create connection

Open the connection wizard and choose FTP transfer.

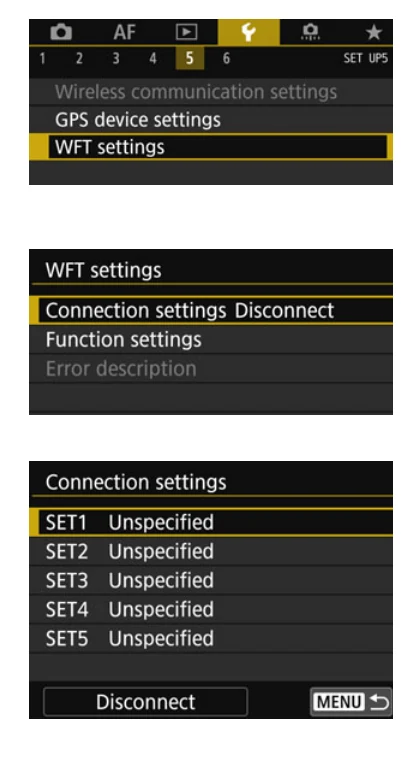

Canon EOS R WFT-E7 settings and connection settings screens — MANUFACTURER MANUAL EXCERPT · 1/2
The EOS R guide shows the WFT settings > Connection settings path and the SET slot used before opening the connection wizard.
Canon WFT-E7 / EOS R network guide · PDF p. 20 ↗Narrow instructional excerpt from the official Canon WFT-E7 / EOS R guide; copyright remains with Canon.

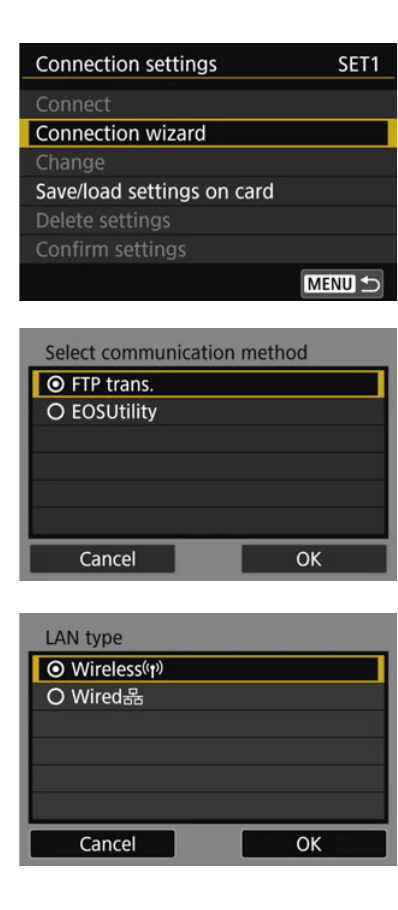

Canon EOS R WFT-E7 connection wizard and FTP trans LAN type screens — MANUFACTURER MANUAL EXCERPT · 2/2
Choose Connection wizard, FTP trans., then Wireless or Wired LAN. This is the EOS R-specific continuation of the setup path.
Canon WFT-E7 / EOS R network guide · PDF p. 21 ↗Narrow instructional excerpt from the official Canon WFT-E7 / EOS R guide; copyright remains with Canon.

FTP server settings

Choose FTP and enter the Camera to Anywhere job profile exactly.

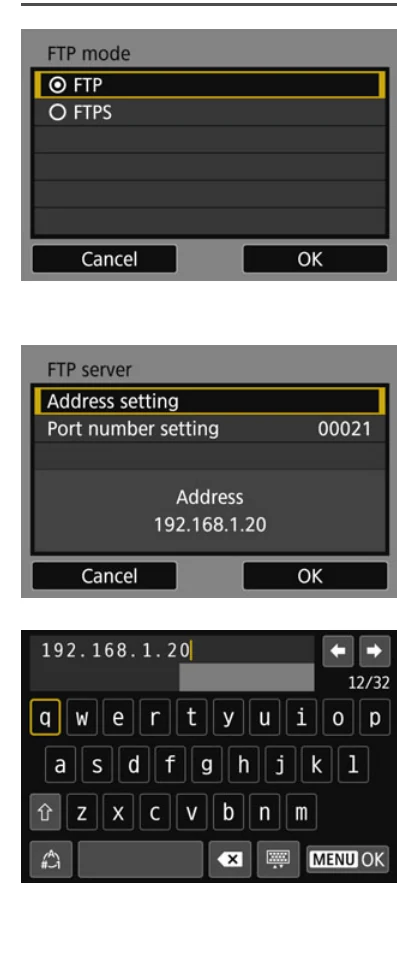

Canon EOS R WFT-E7 FTP mode address setting and server address keyboard screens — MANUFACTURER MANUAL EXCERPT · 1/3
The EOS R server-settings sequence selects FTP/FTPS, opens Address setting, and enters the issued Camera to Anywhere host or IP address.
Canon WFT-E7 / EOS R network guide · PDF p. 32 ↗Narrow instructional excerpt from the official Canon WFT-E7 / EOS R guide; copyright remains with Canon.

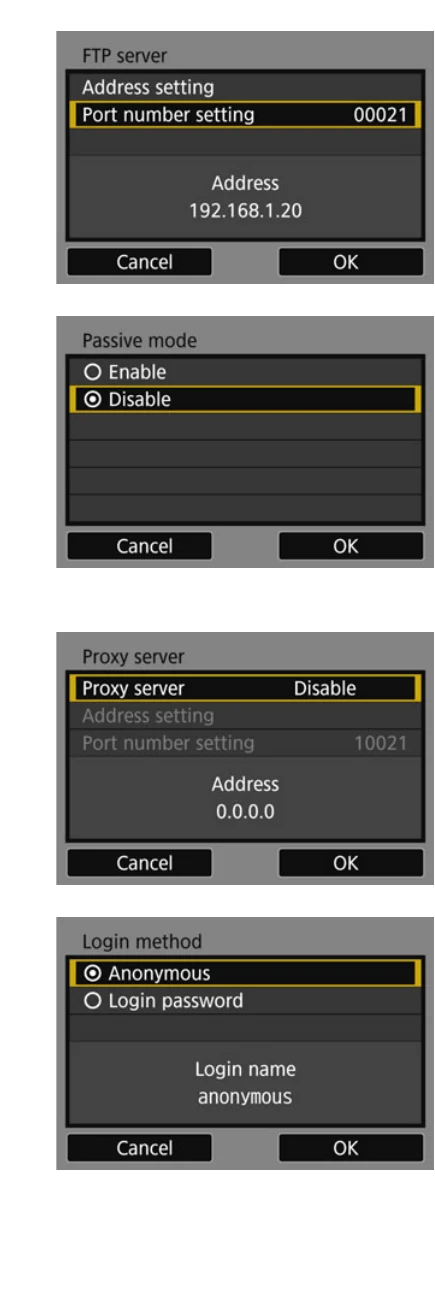

Canon EOS R WFT-E7 port passive mode proxy and login method screens — MANUFACTURER MANUAL EXCERPT · 2/3
Set the issued port, keep passive mode and proxy aligned with the connection card, then choose Login password for the scoped ingest identity.
Canon WFT-E7 / EOS R network guide · PDF p. 33 ↗Narrow instructional excerpt from the official Canon WFT-E7 / EOS R guide; copyright remains with Canon.

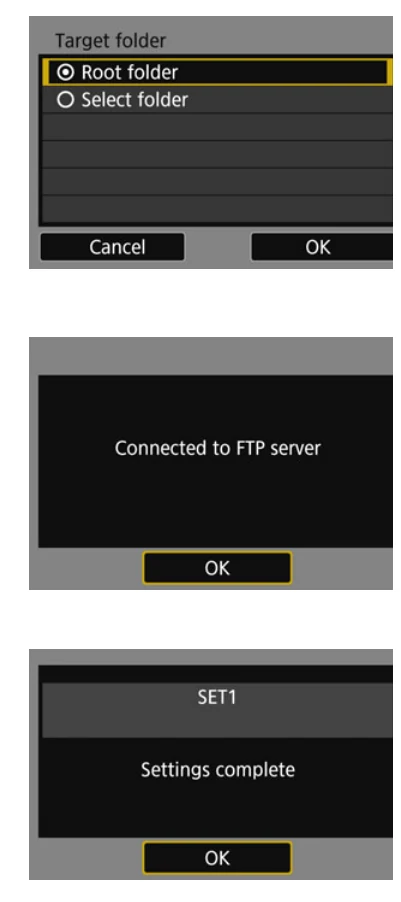

Canon EOS R WFT-E7 target folder and FTP connection completion screens — MANUFACTURER MANUAL EXCERPT · 3/3
Choose Root folder or the supplied target folder, confirm the FTP connection, and verify that settings are stored in the camera.
Canon WFT-E7 / EOS R network guide · PDF p. 34 ↗Narrow instructional excerpt from the official Canon WFT-E7 / EOS R guide; copyright remains with Canon.

What moves, and what does not

Transfer modes

Automatic: new stills after capture.
Manual: selected stills.
Manual: movie files.

Media behavior

Still payloads documented by the manufacturer: JPEG, RAW.
Video payloads documented by the manufacturer: movie files.
The camera writes the source file to its card first; Camera to Anywhere receives a transmitted copy and does not replace in-camera media management.
Treat the camera send mark as transport state, not cloud-delivery proof; confirm the asset appears in the Camera to Anywhere input gallery and destination activity log.

Limits and warnings

Canon requires WFT-E7 firmware 1.4.0 or later and the specified USB cable for EOS R.
Wireless File Transmitter WFT-E7 required.
Video or clip payloads require a manual selection unless the exact camera firmware manual states otherwise.
Venue Wi-Fi client isolation does not block a camera from reaching a public Camera to Anywhere host, but captive portals, outbound-port filtering, weak signal, and phone hotspot sleep can still prevent or interrupt transfer.

Prove it on your body

Run this checklist on the exact body, firmware, network, and media format you will use on assignment.

Canon requires WFT-E7 firmware 1.4.0 or later and the specified USB cable for EOS R. Physical Camera to Anywhere interoperability is not yet lab-verified.

01Confirm EOS R and every required transmitter/adapter run a compatible firmware combination.
02Create a dedicated Camera to Anywhere ingest identity for EOS R; do not reuse a destination OAuth token as a camera password.
03Match protocol (FTP), host, port, username, target directory, and passive/security options to the connection card.
04Send one small still or clip and wait for the camera transfer-complete mark.
05Verify the received file size and checksum in the Camera to Anywhere input gallery before enabling automatic or batch transfer.
06Test the exact recording codec/container and proxy setting planned for the event; a successful JPEG test does not prove video compatibility.
07Trigger the configured destination route and confirm its activity log independently from camera ingest.
08Lock the working camera profile against accidental edits and retain a second known-good profile or printed connection card for event recovery.

If it will not send

01The camera cannot find or connect to the server

Confirm the camera has an IP address, the hotspot has Internet access, the host field contains no URL scheme/path, and the venue permits the published control and data ports.

02Login or destination-folder error

Re-enter the scoped username and secret, preserve case, and copy the target directory exactly; create a fresh ingest credential if the secret may have been exposed.

03Small files work but RAW or video stalls

Check remaining card space, battery/power, hotspot sleep settings, passive-mode configuration, signal strength, gateway size limits, and whether the camera permits that file type in the selected transfer mode.

04FTP data connection opens but no bytes move

Use the passive-mode value from Camera to Anywhere and confirm the network allows the FTP data-port range.

05The camera says sent but the destination does not show the asset

First verify the input gallery received the complete file, then inspect routing-node status; camera success covers the ingest hop, not Dropbox, NAS, or another downstream destination.

06Retries create duplicates or overwrite a prior file

Use a unique camera/job prefix and review the body manual overwrite/rename setting; Camera to Anywhere should deduplicate by upload identity and checksum rather than filename alone.
