Sony
PXW-Z200

PXW-Z200 can initiate FTP, FTPES transfer of original clips, proxy clips, chunked proxy clips over Wi-Fi infrastructure/hotspot; wired Ethernet; USB tethering. The documented route accepts a user-configured server; it is suitable for a destination-neutral ingest gateway after protocol, firmware, and payload testing.

2024FTP · FTPES

Accessory-assisted camera client

TRANSPORT

Wi-Fi infrastructure/hotspot + wired Ethernet + USB tethering

The documented network paths available to the camera or its required transmitter.

PAYLOAD

original clips · proxy clips · chunked proxy clips

File behavior is quoted conservatively until a Camera to Anywhere fixture reproduces it.

TRIGGER

manual; automatic after recording; chunked proxy upload while recording

Transfer can begin from the documented camera-side behavior shown here.

STATUS

Documented.
Not lab-verified.

Physical Camera to Anywhere interoperability is not yet lab-verified.

MANUAL EVIDENCE

1 cited location

Menu labels, behaviors, and warnings on this page are paraphrased from official manufacturer material.

Inspect every citation ↓
BEFORE YOU TOUCH THE MENU

Prepare the camera.
Prepare the route.

Gather these items first, then enter the Camera to Anywhere job credential exactly as issued. The camera sends to the public ingest edge; your private destinations stay downstream.

PREREQUISITES
  1. 01

    Use the documented network path: Wi-Fi infrastructure/hotspot; wired Ethernet; USB tethering.

  2. 02

    Install or attach the required components: none for built-in Wi-Fi and wired LAN; USB cable and phone/modem for tethering.

  3. 03

    Prepare a reachable FTP, FTPES endpoint with a writable destination and a camera-specific credential.

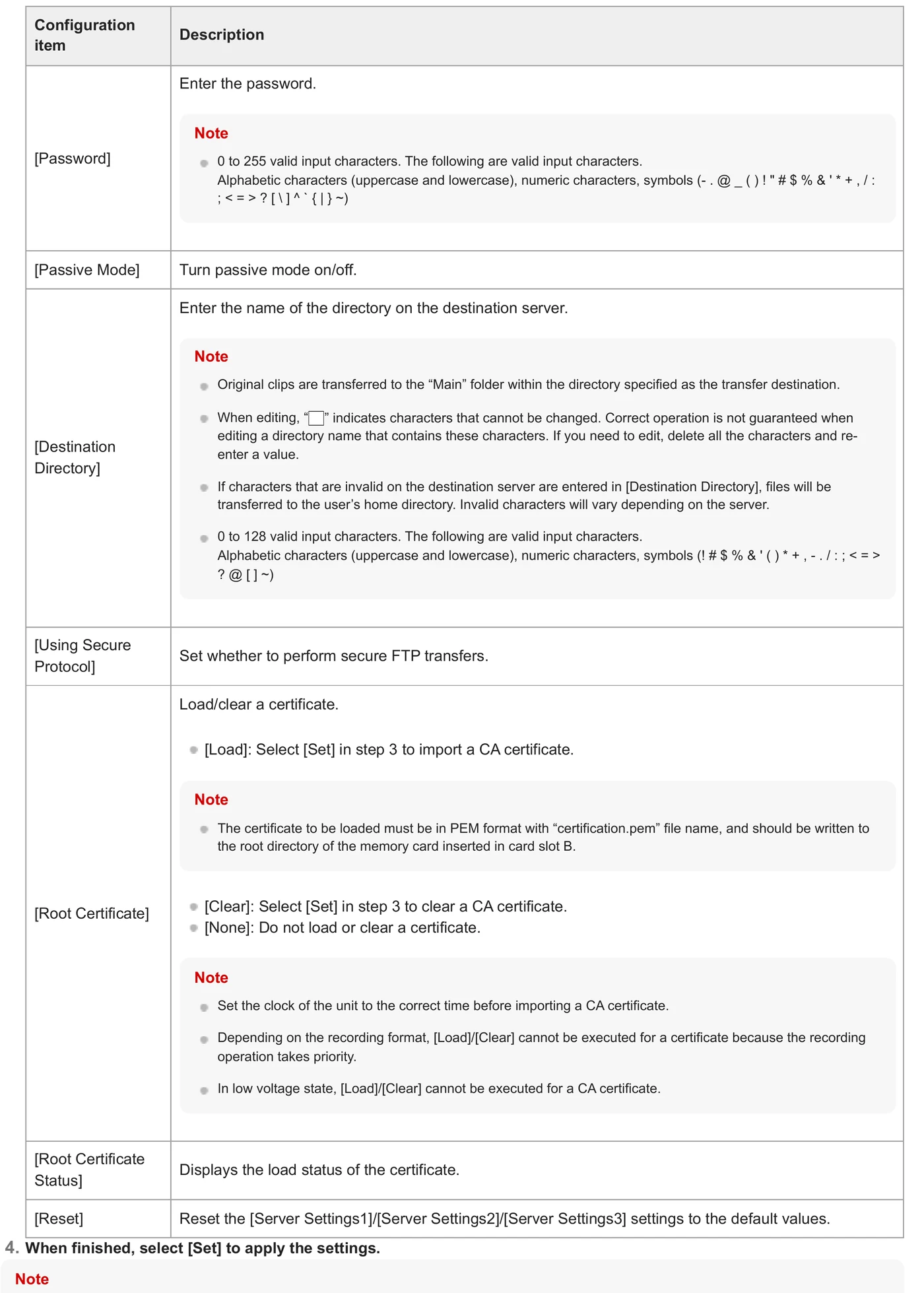

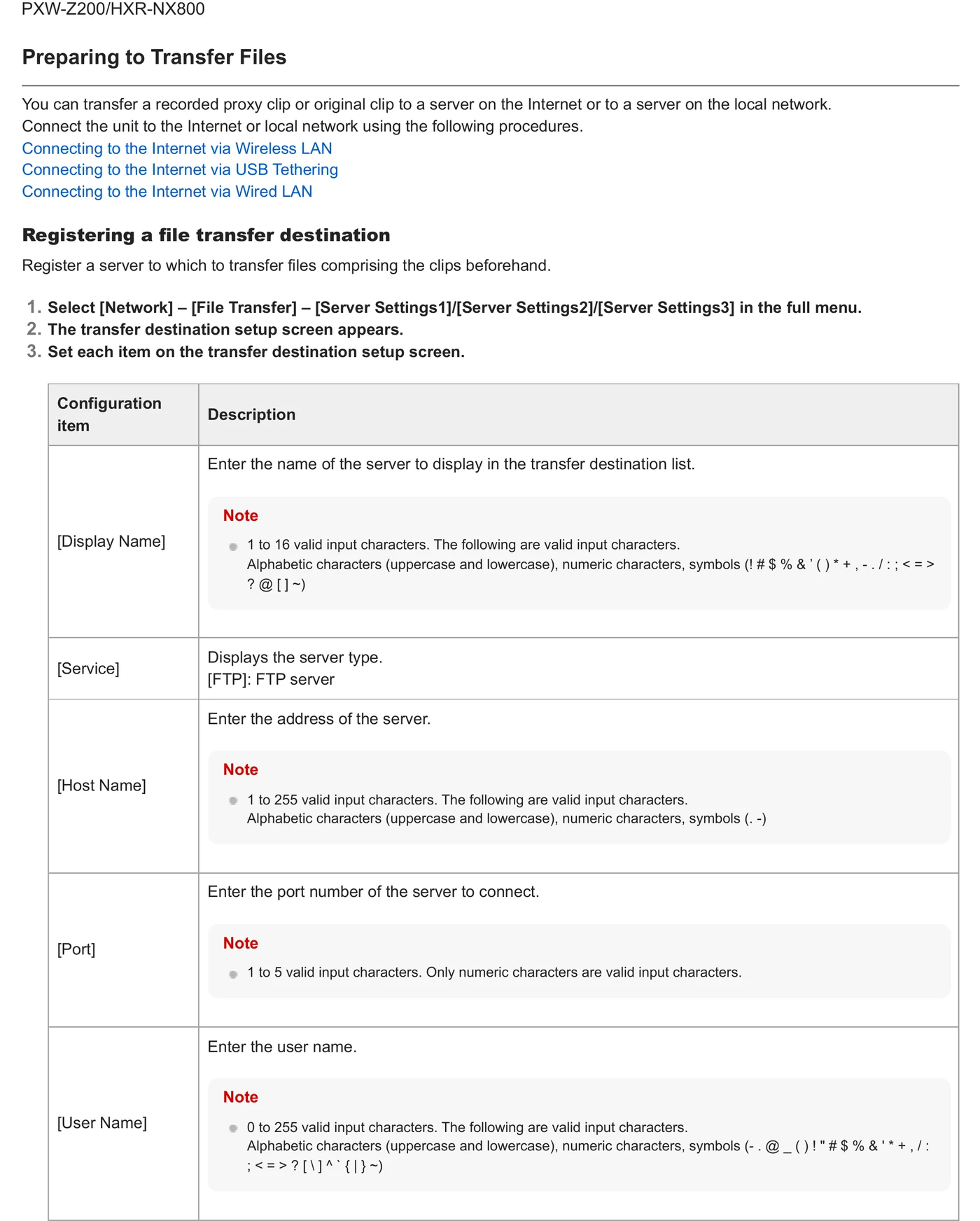

CONNECTION FIELDS

Server Name

An operator-facing destination label.

Distinguishes the production ingest endpoint from vendor-cloud presets or prior assignments.

Server Address / URL

The DNS host or IP value specified by the FTP endpoint.

Directs the camera or adapter to the destination-neutral server.

Protocol / secure connection

A mode explicitly supported by this path: FTP, FTPES.

Must match the listener and its certificate/security configuration.

Port

The port issued with the ingest credential.

Avoids relying on defaults when the gateway uses a dedicated listener.

User Name / Password

A least-privilege credential unique to the camera or event.

Permits isolation, audit, and fast revocation.

Destination Directory

The assigned remote folder, without adding an unverified web URL prefix.

Routes clips into the correct job inbox.

Active / Passive

Match the server; passive is normally required through venue NAT.

Controls how the FTP data channel is opened.

Root Certificate

The trusted CA root required by the FTPS/FTPES server, in the format specified by Sony.

Allows TLS server validation instead of bypassing certificate errors.

WHAT ACTUALLY MOVES

Transfer behavior,
without the guesswork.

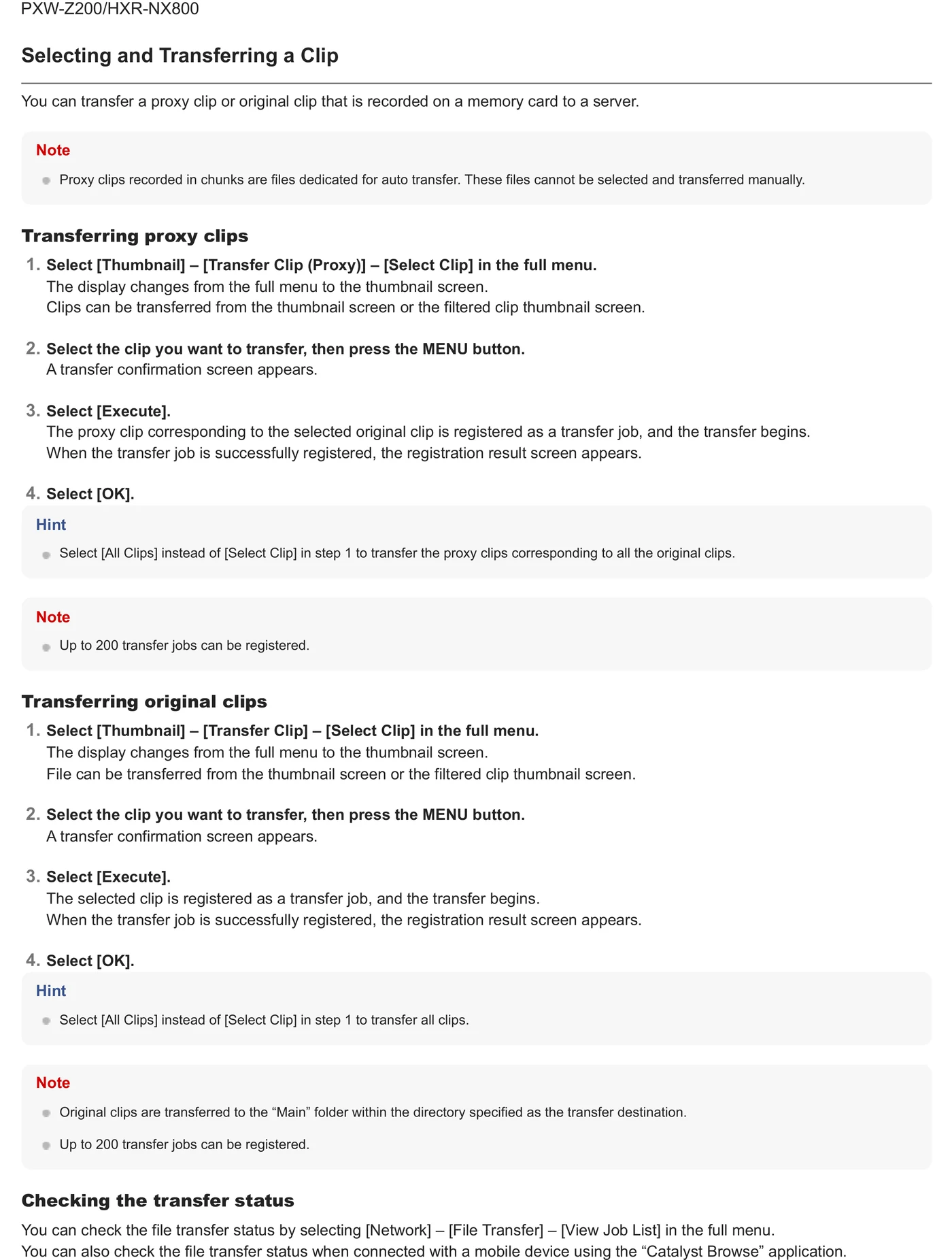

TRANSFER MODES
  • Manual path: manual; automatic after recording; chunked proxy upload while recording.
  • Automatic upload is available on this documented path.
  • Where chunked proxy upload is offered, treat it as a distinct mode from post-recording original-file upload.
MEDIA BEHAVIOR
  • Documented payload classes: original clips, proxy clips, chunked proxy clips.
  • Proxy, original/high-resolution, partial, and chunked transfers are separate choices where present; verify the selected type before the event.
  • Use the camera or adapter job/status list as the first completion signal, then verify the object at the destination.
LIMITS + WARNINGS
  • Required path/hardware: none for built-in Wi-Fi and wired LAN; USB cable and phone/modem for tethering.
  • A product may also advertise a vendor-cloud workflow; this guide uses only the documented arbitrary-server path and does not treat vendor-cloud-only upload as interchangeable.
  • Feature names and background-transfer behavior vary by camera and adapter firmware.
FIELD VERIFICATION

Prove the path before the green flag.

Run this checklist on the exact body, firmware, network, and media format you will use on assignment.

  1. 01Register one test server and make it the explicit destination.
  2. 02Upload a short proxy or small clip and confirm the transfer job reaches Completed.
  3. 03Open the received file and compare its size/duration with the source clip.
  4. 04Record which camera/adapter firmware, accessory, protocol, and port passed the test.
  5. 05If auto or chunk upload is enabled, record a short new clip and verify the expected original/proxy behavior.
TROUBLESHOOTING

If it will not send,
start here.

01The File Transfer menu is missing or disabled.

Verify required firmware, option license, adapter attachment, recording state, and that the selected network mode permits file transfer.

02The server cannot be registered.

Confirm host syntax, protocol and port, DNS, passive/active mode, credentials, and the writable destination path.

03Secure FTP reports a certificate error.

Verify date/time, root CA import, server hostname, certificate chain, TLS compatibility, and revocation settings documented for the model.

04Proxy arrives but the original does not.

Check payload selection, auto-upload mode, recording codec/licence restrictions, media availability, and whether original transfer starts only after recording stops.

05A queued job repeatedly resumes or fails.

Check link stability, free storage, server timeout/size limits, adapter power, and camera job-list error text before retrying.

PRIMARY EVIDENCE

Official source trail.

The local archive is retained for research continuity if an official link changes. It is not redistributed through this site.

archived-official-pdf · retrieved 2026-08-26T04:40:28Z · 340 pages
  1. 01

    Official manufacturer PDF

    Preparing to transfer files; Transferring clips automatically; Uploading Using Secure FTP

    Open manufacturer source ↗
BEFORE FIELD USE

Documentation gets us to the menu. Hardware earns the badge.

This guide compiles all discovered FTP-related setup evidence for this model, but it is not a promise that every firmware version and venue network will behave identically. Verification records the exact body, firmware, access point, protocol, payload, and result.
